Pump Motor Laminations In China
The efficient functioning of pump motors relies significantly on the quality and design of pump motor laminations.
Our state-of-the-art facilities employ cutting-edge technology and precision engineering to produce electrical steel laminations that meet the stringent standards of efficiency and reliability.
Customized Electrical Steel Laminations For The Pumps
Lamnow offers customized rotors and stator lamination of generators, transformers, and motor solutions to meet clients’ needs. Our tailored pump electric motor core laminations apply to monoblock pumps, submersible pumps, water pumps, industrial pumps, agricultural pumps, oxygen pumps, sewage pumps, self-priming pumps, centrifugal pumps, JET pumps, pressure booster pumps, hydraulic vane pumps, etc.
Design And Manufacture Motor Laminations Capabilities For Pump
Material Sourcing Expertise
Lamnow specializes in sourcing and providing expertise wide variety of materials, including 0.1mm -1mm thickness Non-Grain Oriented (NGO), Grain Oriented (GO), Cold Rolled Motor Lamination (CRML) steel, and 25 micorn Amorphous Metal Alloys.
Advanced Stamping Capabilities
Our extensive capabilities in advanced stamping processes include progressive stamping, compound stamping, rotary notch stamping, and axial punching. Global reach and capacity to handle diverse production requirements, showcasing versatility in manufacturing.
Enhanced Motor Performance and Quality
We focus on providing precision lamination solutions aimed at improving motor performance and minimizing core loss, thereby enhancing overall motor efficiency. Commitment to helping clients achieve cost savings in the manufacturing process.
On-Time, In-Full Delivery
High-volume manufacturing facilities designed for quality and efficiency, ensuring the timely and complete delivery of client orders. Reliability in meeting production schedules and maintaining consistency in order fulfillment.
Offer Technical Support
Our dedicated design and engineering team is available to collaborate with clients throughout the entire product development process. Support provided from ideation to manufacturing, demonstrating a commitment to being a trusted partner in product design and development.
Other Superior Services
Lamnow offers a range of value-added services beyond basic lamination manufacturing, including annealing, bonding, welding, riveting, cleating, shaft-inserting, insulation coating, winding, die-casting, deburring, wire cutting, and laser cutting.
Stator And Rotor Laminations Fabrication Process For Pumps Motor
Pumps Lamination Prototype Services
The pump motor lamination prototypes use advanced EDM wire cutting and laser cutting machines to manufacture silicon steel laminations.
Our cutting-edge technology includes low-speed, middle-speed, and high-speed wire-cutting options, ensuring precision in shaping silicon steel sheets. This versatile approach allows us to tailor prototypes to your exact specifications.
With a commitment to efficiency, our lamination prototypes boast a lead time of 7 – 15 days, providing a rapid and reliable solution for your motor development needs.
Lamination Stamping For Pump
We employ cutting-edge techniques such as progressive stamping, compound stamping, and single-slot notching to in-house manufactured high-precision and efficient pump motor laminated iron core.
Using advanced progressive stamping techniques, we manufacture laminations with precision and speed, ensuring optimal performance in pump motors. This method allows for the simultaneous creation of multiple features in a single pass, resulting in cost-effective mass production and consistent quality.
Our automation compound stamping punching press merges multiple processes into a single stroke, enhancing precision and accuracy in industrial pump motor lamination production. This technique streamlines operations, reducing materials waste, time, and costs while ensuring tight tolerances.
The rotary notching process for pump motor laminations is a single-operation notching lamination. Utilizing advanced servo control systems, our rotary notching machine creates seamless notches, reducing material waste and boosting motor performance. This technology is an economical choice for low-volume production or prototyping.

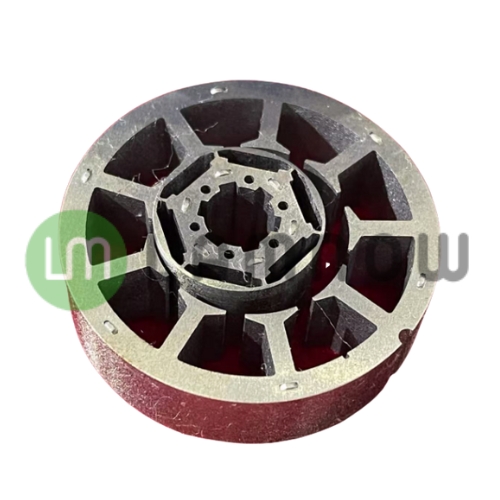

In the pump motor rotor stator lamination stacking process, various methods such as employ interlocking, cleating, riveting, and welding to create a cohesive motor core.
Progressive die stamping utilizes the interlocking process, which involves intricately shaping laminations to fit together seamlessly. This method enhances structural stability and minimizes energy losses.
Cleating laminations added stability, and riveting, and securing laminations with fasteners, contribute to a robust core assembly. In addition, we employ welding for a strong bond to avoid heat-related issues.
Pumps Motor Lamination Stacking
Pumps Motor Stator Winding
The pump motor stator winding, comprising an insulated copper wire, plays a crucial role in generating essential magnetic fields for motor operation. Meticulously arranged within the stator, it creates electromagnetic forces when energized.
The winding configuration, often in the form of coils, dictates the motor’s performance characteristics, including speed, torque, and efficiency.
Our engineers carefully design and wind the stator to achieve specific operational requirements for pump motors.
Quality Control For Pumps Motor Lamination Stacks
- As a professional motor stator rotor lamination supplier, our high-quality pump motor lamination stacks quality control processes with ISO 9001 principles. Maintain a customer-centric approach to quality. Our strict quality meets customer requirements for pump motor lamination stacks.
- Using CMMs to verify the accuracy and geometry of the motor stator and rotor lamination stacks.
- Our 2D imager captures high-resolution images of the lamination stacks. This can be used for visual inspection and to identify any surface defects or irregularities.
- The technician uses digital height gauges to measure the lamination stacking height, ensuring uniformity and precision in the stacking process.
Pumps Laminations FAQS
Pump motor laminations are commonly crafted from materials like silicon steel, prized for its magnetic properties and low core loss. Additionally, nickel alloy, cobalt alloy, and thin-gauge electrical steel may be utilized to enhance specific performance characteristics, offering versatility in motor design and efficiency.
Laminations in pump motors are insulated to prevent electrical contact between individual laminates. This insulation is typically achieved through coatings of materials like epoxy varnish or oxide, ensuring the integrity of the electrical insulation and overall motor performance.
Lamnow is a motor lamination manufacturer in China, our product finds applications beyond pumps, serving industries like automotive(electric vehicles), household appliances, power tools, robotic, and industries. They are integral in electric motors across various fields, ensuring efficiency in machines ranging from household appliances to industrial equipment.
Yes, laminations can be tailored for different motor designs and performance requirements. Customization is common for specific applications.
The pump motor core, typically composed of laminations, provides key advantages. It reduces energy loss through efficient magnetic flux control, enhancing overall motor efficiency. Additionally, it contributes to lower noise levels and improved heat dissipation, ensuring reliable and quiet motor operation.
High-Precision Pump Electric Motor Laminations!
Upgrade your electric motors with our high-quality pump electric motor laminations. Optimize performance and reliability. Contact us now for the precision that powers success!
