Drones Motor Stator Rotor Laminations
Motor laminations for drones play a crucial role in their efficiency and performance. These thin, insulated layers of magnetic material are meticulously designed to form the core of the drone’s motor, facilitating the generation of electromagnetic fields.
Lamnow is a leading stator rotor lamination manufacturer of motors, generators, and transformers based in China. We specialize in the design and manufacturing of high-quality motor laminations specifically tailored for drone applications.
Customized Electric Motor Stator Rotor Laminations For UAVs
We offer customized high-precision electric motor laminations for UAVs. From FPV RC Drone to agriculture, industrial, aircraft, fixed-wing, and multi-rotor drones, our expertly crafted laminations reduce eddy current losses, and low core losses, and enhance performance and efficiency.
Design And Manufacture Capabilities For Drones Motor Core Laminations
Material Sourcing Expertise
Lamnow specializes in sourcing and providing expertise wide variety of materials, including 0.1mm -1mm thickness Non-Grain Oriented (NGO), Grain Oriented (GO), Cold Rolled Motor Lamination (CRML) steel, and 25 micorn Amorphous Metal Alloys.
Advanced Stamping Capabilities
Our extensive capabilities in advanced stamping processes include progressive stamping, compound stamping, rotary notch stamping, and axial punching. Global reach and capacity to handle diverse production requirements, showcasing versatility in manufacturing.
Enhanced Motor Performance and Quality
We focus on providing precision lamination solutions aimed at improving motor performance and minimise core loss, thereby enhancing overall motor efficiency. Commitment to helping clients achieve cost savings in the manufacturing process.
On-Time, In-Full Delivery
High-volume manufacturing facilities designed for quality and efficiency, ensuring the timely and complete delivery of client orders. Reliability in meeting production schedules and maintaining consistency in order fulfillment.
Offer Technical Support
Our dedicated design and engineering team is available to collaborate with clients throughout the entire product development process. Support provided from ideation to manufacturing, demonstrating a commitment to being a trusted partner in product design and development.
Other Superior Services
Lamnow offers a range of value-added services beyond basic lamination manufacturing, including annealing, bonding, welding, riveting, cleating, shaft-inserting, insulation coating, winding, die-casting, deburring, wire cutting, and laser cutting.
Stator And Rotor Laminations Fabrication Process For UAV Motor
Drones Motor Stator Rotor Laminations Prototype
In drone motor lamination stacks prototyping, we employ both laser-cutting and wire-cutting processes to manufacture intricate laminations.
Laser cutting employs a focused laser beam to precisely slice through materials, ensuring clean and accurate edges in the lamination stacks. This method excels in creating intricate patterns and shapes with minimal material wastage.
On the other hand, wire cutting involves using a wire electrode to shape the laminations, allowing for the production of more complex and detailed designs.
With a lead time of 7 – 15 days, our efficient and agile prototype development underscores our dedication to delivering high-quality drone components that meet the demands of contemporary technology.
The progressive die stamping manufacturing process involves using a high-speed punching press for a series of consecutive stamping operations performed on a silicon steel metal strip, gradually forming the desired shape of the laminations.
Progressive stamping ensures remarkable consistency and accuracy in each lamination, resulting in enhanced efficiency and performance of the drone motors.
This method is particularly advantageous for high-volume production, as it allows for the rapid creation of intricate designs with minimal material waste.
In addition, our progressive stamping press punches segmented stator laminations to meet clients’ needs.

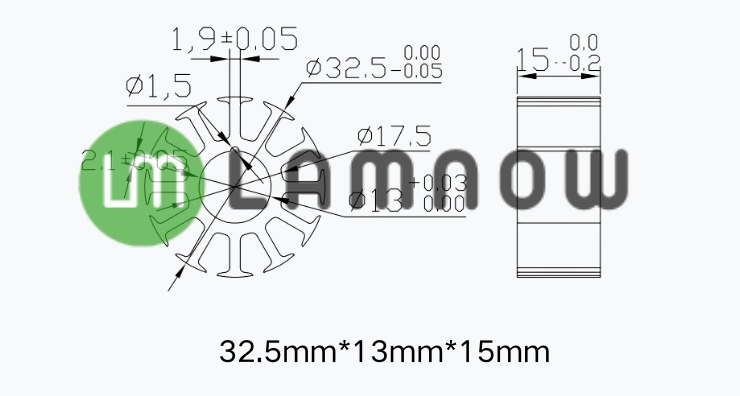

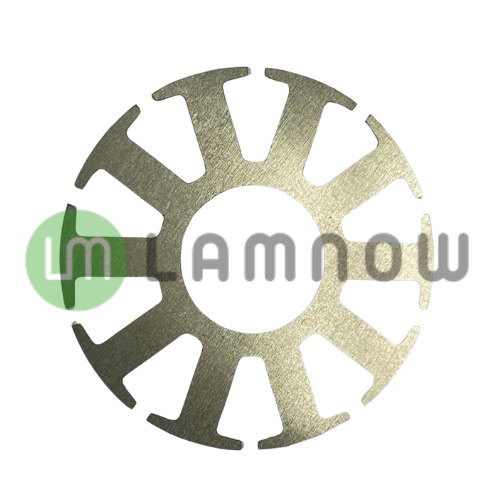

Lamination Stamping For UAV Motor
Drone Motor Lamination Bonding
This process involves bonding individual laminations, typically made of silicon steel, to create the motor’s core.
Employing glue dot bonding, we ensure secure adhesion between laminations, enhancing structural integrity. This method involves the precise application of adhesive dots, creating a robust bond while minimizing excess glue.
Additionally, our self-bonding process leverages the inherent adhesive of certain electrical steel laminations, promoting a seamless fusion without external adhesives. This approach not only streamlines production but also contributes to the overall durability of the motor components.
During stamping, strategic interlock points are created on the motor laminations, allowing them to seamlessly stack into cores.
This interlock point, whether in a rectangle point or round circular shape point, facilitates the self-interlock of the lamination from the stator and rotor core.
Progressive stamping uses an interlock process to enhance efficiency, saving time and costs during assembly. The resulting precise and secure fit between laminations promotes structural integrity, minimizing electromagnetic losses, heat generation, and noise.
UAV Motor Lamination Interlocking

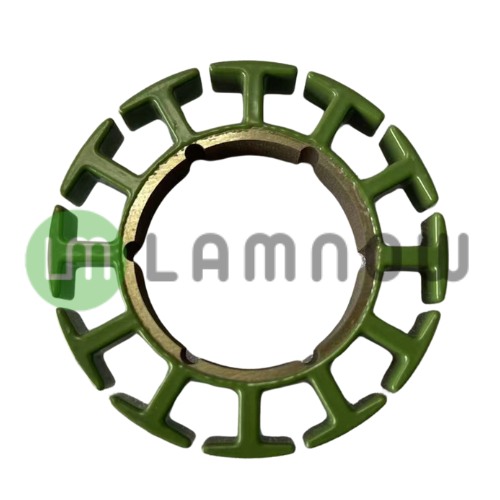

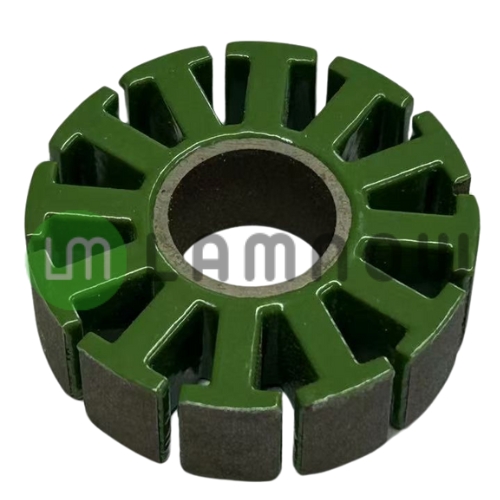

Epoxy Powder Coating For Drone Motor Stacks
In this method, the iron core of the motor undergoes a coating process using epoxy powder. This coating serves as a protective layer, providing resistance against corrosion, abrasion, and environmental factors.
The epoxy powder coating not only safeguards the motor from external elements but also improves its insulation properties.
This process ensures longevity and reliability in the drone motor’s operation, even in challenging conditions.
Additionally, the epoxy coating contributes to thermal stability, preventing overheating during prolonged usage.
Motor stator core windings are essential components that generate the magnetic field necessary for drone motor operation.
The process involves carefully winding insulated copper wire around the stator core, creating coils that interact with the rotor to produce electromagnetic forces.
Precision is key to achieving desired electrical characteristics, and we employ automated winding machines for consistency and efficiency.
In addition, we will provide manual winding according to customer requirements, skilled technicians can flexibly handle complex winding patterns and custom designs.
UAV Motor Stator Winding
Quality Control For Drones Motor Lamination Stacks
- Quality control for drone motor lamination stacks is crucial for ensuring reliability and high-performance. We employ strict quality control standards for rotor and stator laminations and obtained ISO 9001 certification.
- Use CMM for precise measurements of critical dimensions to meet design specifications.
- Leverage the 2D imager for detailed visual inspections, identifying surface irregularities, and ensuring uniform lamination.
- Utilize the digital height gauge for accurate measurements of stack height, ensuring consistency and adherence to specifications.
Drone Laminations FAQS
Drone motor laminations are commonly crafted from materials such as silicon steel, renowned for its magnetic properties. We offer other options including nickel alloy, cobalt alloy, thin-gauge electrical steel, and innovative choices like new amorphous metal alloys, each offering specific advantages in terms of efficiency and performance.
Utilizing amorphous materials for UAV motor cores offers advantages such as reduced core losses due to their non-crystalline structure, enhancing motor efficiency. Their magnetic properties contribute to improved performance, making them an ideal choice for achieving higher levels of energy efficiency in drone motors.
Current UAV motor laminations often employ a self-adhesive process for ease of assembly and enhanced manufacturing efficiency. This method streamlines production, ensuring precise alignment of laminations and reducing the overall complexity of motor construction in unmanned aerial vehicles (UAVs).
Yes, laminations can be customized based on the specific requirements of the drone and its application. Different thicknesses and materials may be chosen to optimize performance. Whether BLDC motor lamination in drones or laminations in other applications, we offer a wide range of solutions to meet your needs.
Drones commonly use Brushless DC (BLDC) motors, featuring motor stator laminations for efficient electromagnetic operation. These motors provide high torque, essential for drone propulsion, and precise speed control. BLDC motors offer a favorable power-to-weight ratio, making them ideal for aerial applications in drones.
Get Cutting-Edge UAV Motor Laminations!
Unlock peak efficiency and power for your drone. Contact us to upgrade to our advanced UAV motor laminations today and experience unmatched aerial performance.
